I thought it was time to start this thread and have a single place to see what mods people have done.

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
I have a lot on order and this just came in. Tomorrow the strut tower bar arrives...27won FTW
Also I have a Whiteline 22mm rear sway bar and Civic Type R front springs arriving soon.

Update: Working with 27won... Engine mount will fit strut tower bar will take some modification to fit the Integra.


Last edited:

RRP RSX-S

Senior Member
First Name
Mike
Joined
Oct 16, 2021
Threads
10
Messages
670
Reaction score
604
Location
Florida
Car(s)
2013 Mustang GT
I have a lot on order and this just came in. Tomorrow the strut tower bar arrives...27won FTW
Also I have a Whiteline 22mm rear sway bar and Civic Type R front springs arriving soon.
From what I’ve been able to gather, 27Won seems to be a bit more boutique and “higher end” vs PRL. Not taking anything away from PRL, just an observation that 27Won seems a notch nicer and designed with a little precision.

That said, why this one vs the PRL rear mount? I don’t love the orange which makes me lean towards prl’s. But there are some design differences, like the 27Won has flat spots on the metal around the bigger bushing. Is that style or is that because it’s engineered better?

Does sound good and I like the loops as opposed to the traditional round muffler like the 27Won exhaust has. BUT those tips sure look like they stick way out.

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
From what I’ve been able to gather, 27Won seems to be a bit more boutique and “higher end” vs PRL. Not taking anything away from PRL, just an observation that 27Won seems a notch nicer and designed with a little precision.

That said, why this one vs the PRL rear mount? I don’t love the orange which makes me lean towards prl’s. But there are some design differences, like the 27Won has flat spots on the metal around the bigger bushing. Is that style or is that because it’s engineered better?


Does sound good and I like the loops as opposed to the traditional round muffler like the 27Won exhaust has. BUT those tips sure look like they stick way out.
PRL hasn't released their rear engine mount yet.

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
Last edited:

bguttery

Member
Joined
Jul 19, 2016
Threads
4
Messages
43
Reaction score
73
Location
Houston, TX
Car(s)
2023 Acura Integra 6-speed manual
I have a lot on order and this just came in. Tomorrow the strut tower bar arrives...27won FTW
Also I have a Whiteline 22mm rear sway bar and Civic Type R front springs arriving soon.

Update: Working with 27won... Neither the engine mount nor the strut tower bar fit the Integra.

I have both on my Integra and they fit fine. I had to remove the top battery mount, but the strut tower bar holds the battery down just fine with minimal movement.

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
I have both on my Integra and they fit fine. I had to remove the top battery mount, but the strut tower bar holds the battery down just fine with minimal movement.
Yeah I spoke with the team and stupid me had the engine mount backwards. Interesting on the bracket removal. Any photos you could share? The negative cable bunch is quite thick and not sure if that would fit under. I did try running on top

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
My rear sway bar and Civic TypeR front springs arrived.. maybe a tomorrow thing

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting

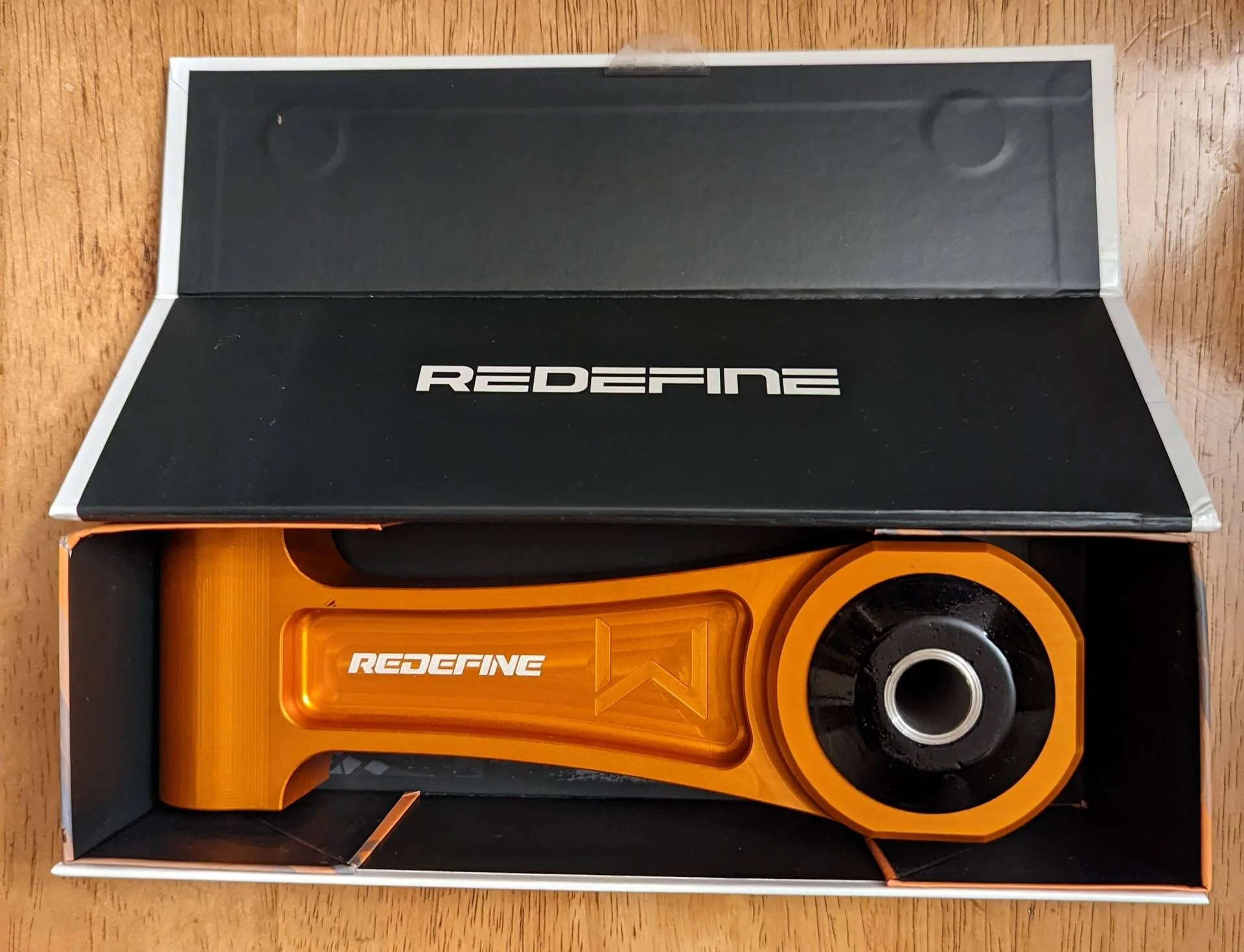

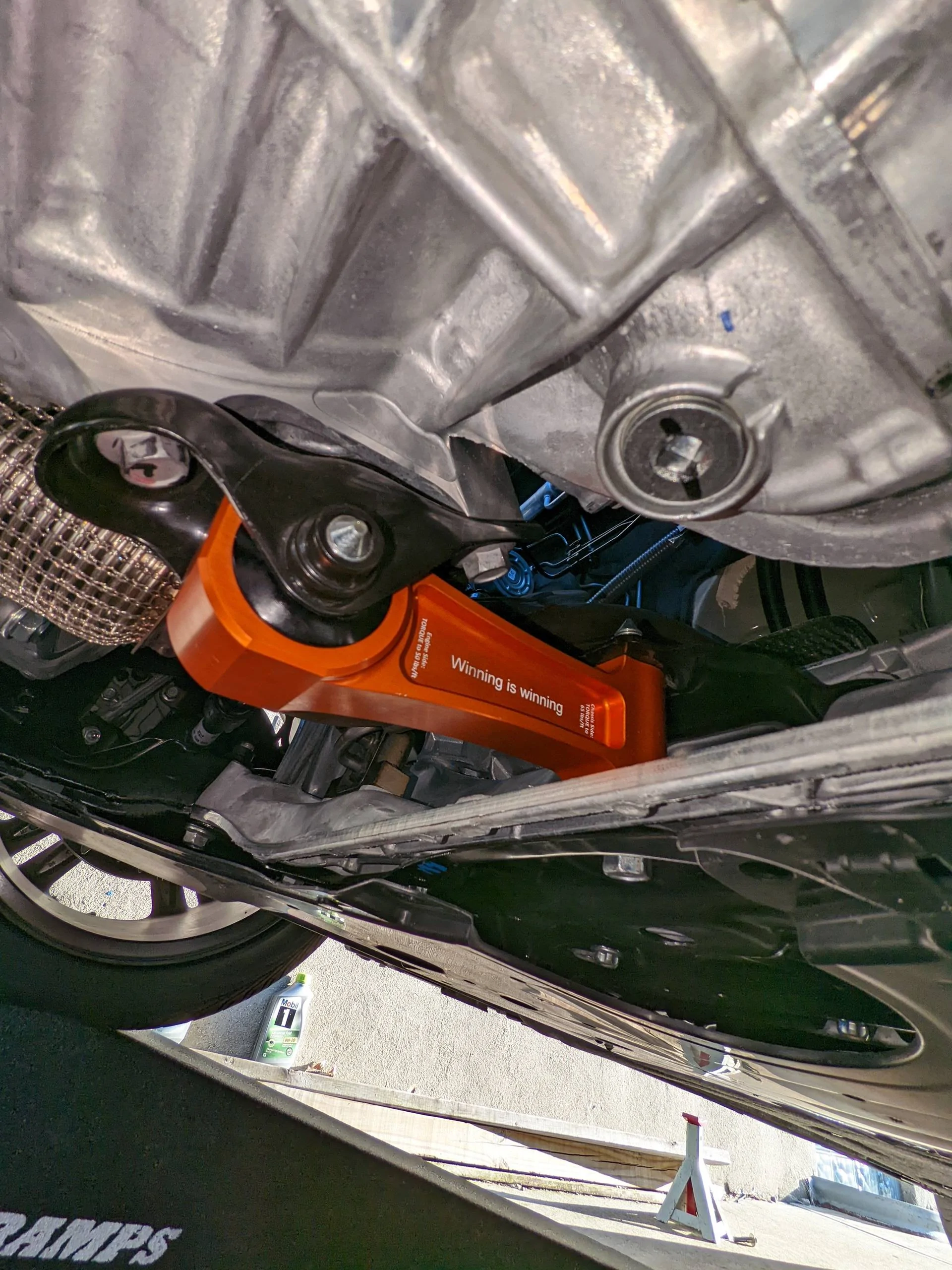

Rear motor mount is installed. I accidentally purchased the 60a durometer version so we will see how it does. Right out of the box it's solid and does transmit a bit of noise and vibration. We will see how a week or so of driving does on it.

Last edited:
OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting
Do you know the specs of the type R springs vs stock? Any drop?
Should be the same ride height but a lot stiffer. This should keep the car flatter in turns.
If this data holds true from the civic SI to our Integra
10th gen FK8 CTR OEM F: 263lb R: 235lb
11th gen FE Si OEM F: 155lb R: 320lb

OP
OP
Integra23

Integra23

Senior Member
First Name
Tom
Joined
Mar 19, 2022
Threads
7
Messages
458
Reaction score
479
Location
Mid West
Car(s)
Waiting

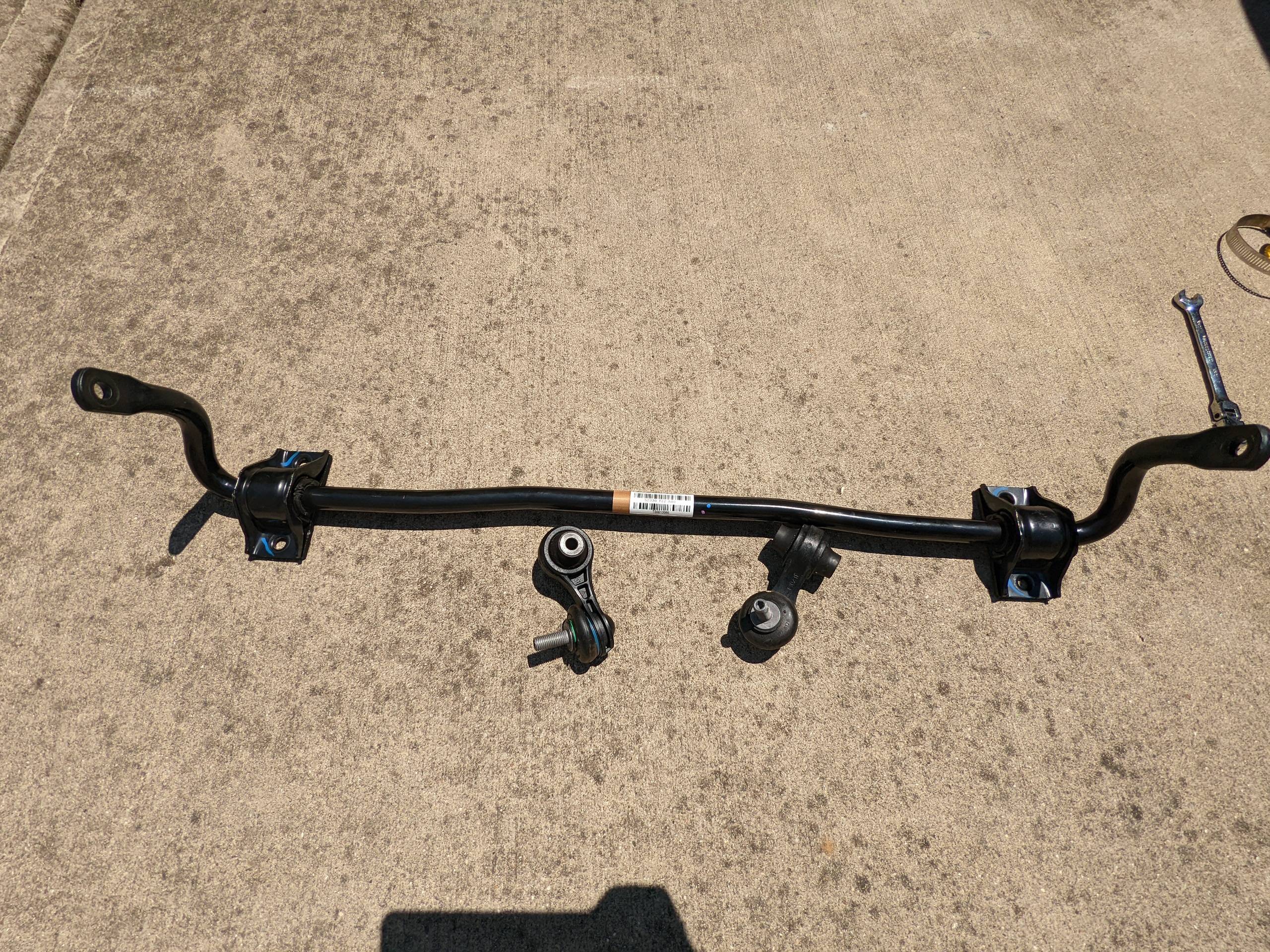

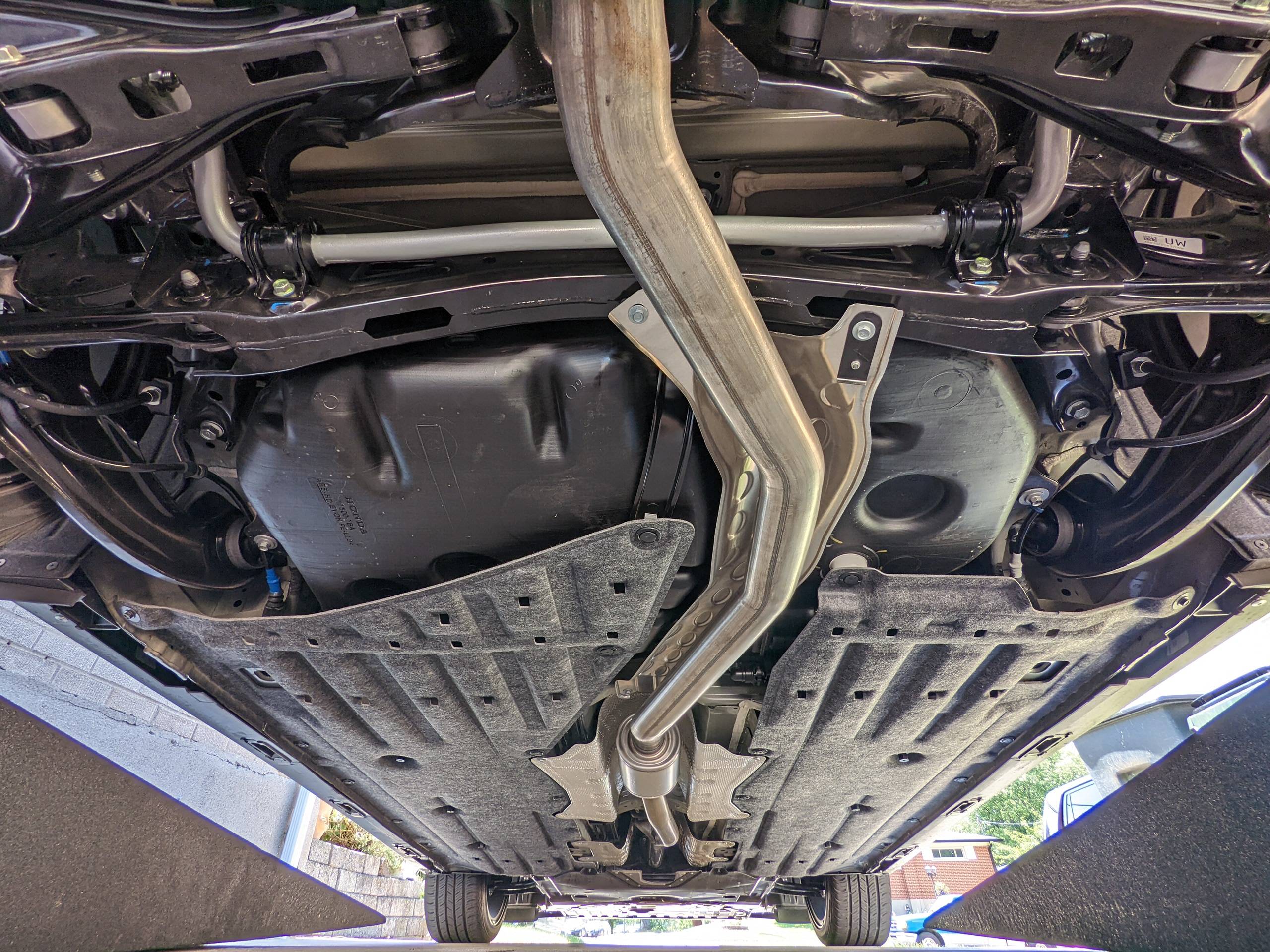

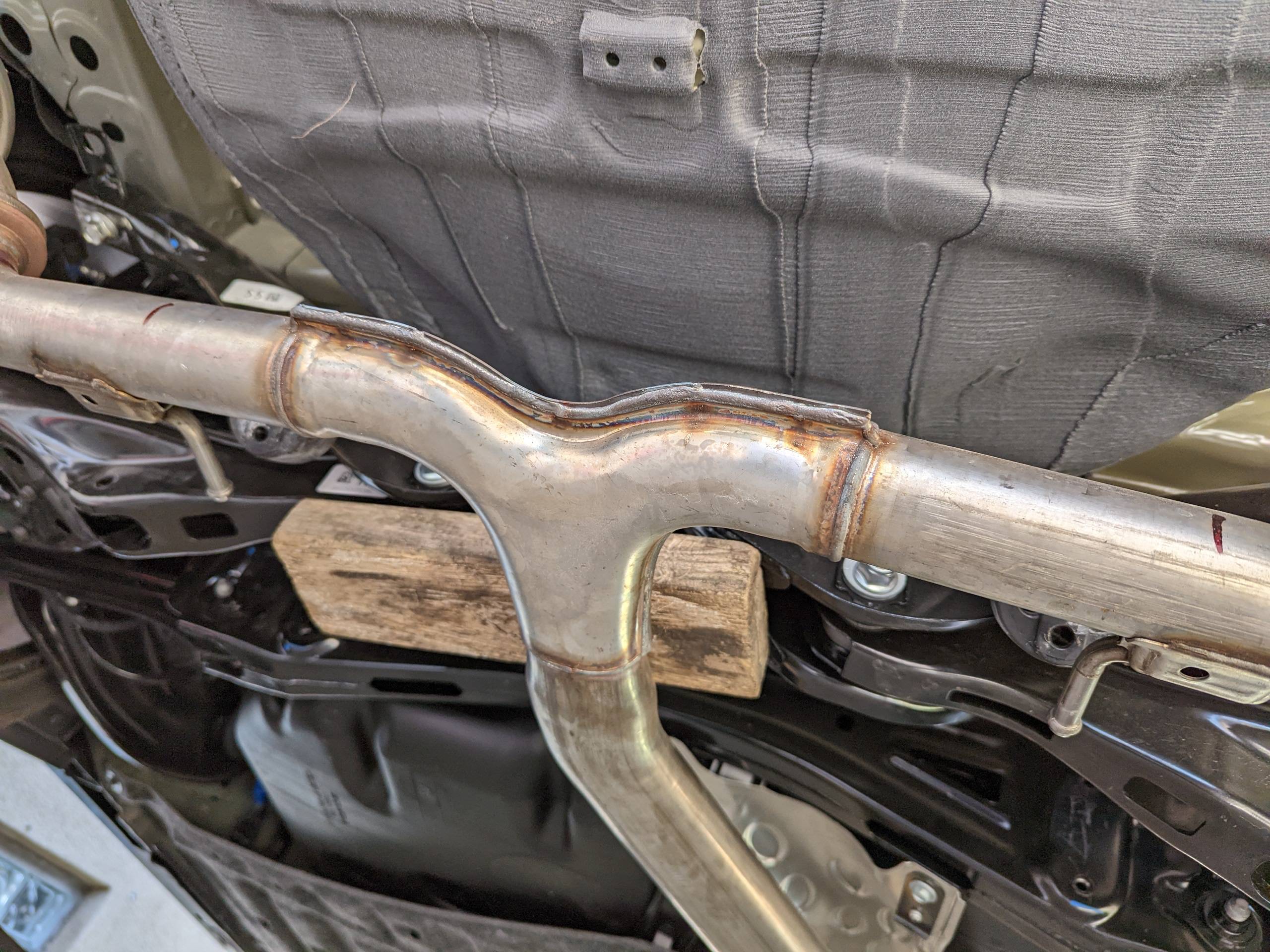

Whiteline rear sway bar installed. I undid the exhaust hangers by the rear suspension and placed a piece of 2x4 between exhaust and suspension. This allowed enough room to remove the old sway bar without cutting off the attached mounts.
Parts used:
Whiteline 22mm sway bar BHR97Z
Honda Accord sway bar links( factory are composite plastic) 52320-TLB-A00
Civic brackets 5238-TGH-A00







bguttery

Member
Joined
Jul 19, 2016
Threads
4
Messages
43
Reaction score
73
Location
Houston, TX
Car(s)
2023 Acura Integra 6-speed manual
Installed my PRL high velocity down pipe today. Took about two hours.
