INSTALL: FitCAMX and Radar Detector

Fawkes

Member
Joined
Nov 16, 2022
Threads
3
Messages
18
Reaction score
8
Location
NV
Car(s)
2023 Acura Integra A-spec
Is there an OEM pin connector in the rearview mirror housing that I can tap into for power/ground? Was hopping to use a MirrorTap power cable for my radar detector. Thanks.

Last edited:

RB2490

Senior Member
Joined
Sep 12, 2016
Threads
20
Messages
399
Reaction score
299
Location
new york
Car(s)
2015 wrx, 2015nissan juke nismo, 15 scion frs
Trying to figure this out this week. I have a dongar usb adapter right now and I purchased a usb to rj11 cable from a website where they claim the cable works. If not I will have to try hard wire somehow. I will update you when I can. My pops got me this radar for xmas.


RB2490

Senior Member
Joined
Sep 12, 2016
Threads
20
Messages
399
Reaction score
299
Location
new york
Car(s)
2015 wrx, 2015nissan juke nismo, 15 scion frs

You can check out video here to see what the mirror connection looks like

OP
OP
Fawkes

Fawkes

Member
Joined
Nov 16, 2022
Threads
3
Messages
18
Reaction score
8
Location
NV
Car(s)
2023 Acura Integra A-spec

You can check out video here to see what the mirror connection looks like
Thx for this. I’m going to install my FitCamX today to see what is up there. I’d rather pin tap into an exiting connector vs using two adapters in that housing.

OP
OP
Fawkes

Fawkes

Member
Joined
Nov 16, 2022
Threads
3
Messages
18
Reaction score
8
Location
NV
Car(s)
2023 Acura Integra A-spec

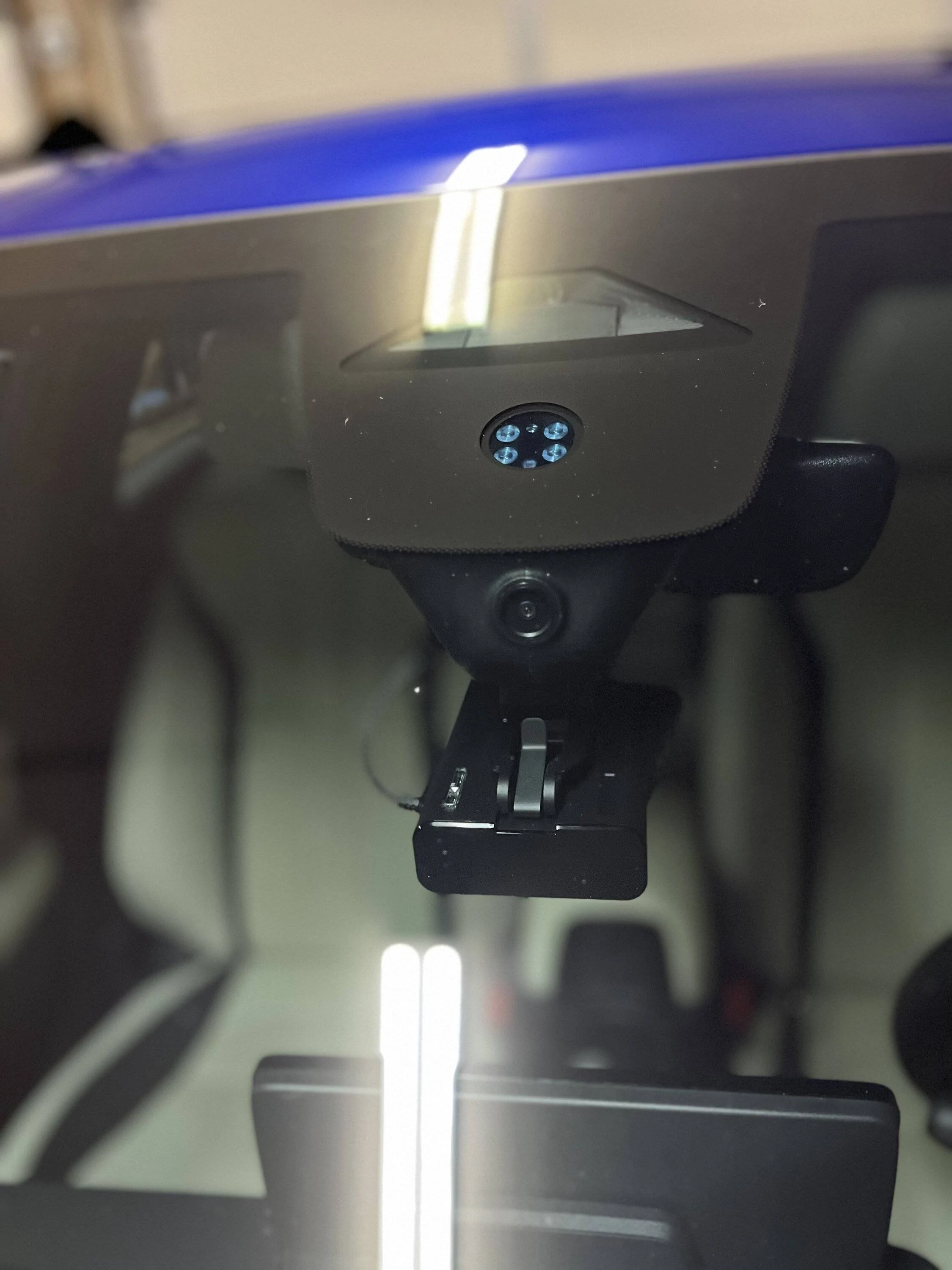

@RB2490 I got around installing the FitCAMX and Radar Detector.

FitCAMX: uses and adapter harness to split the power from an OEM connector behind the sunroof/map lights housing. It’s an easy install per this video.

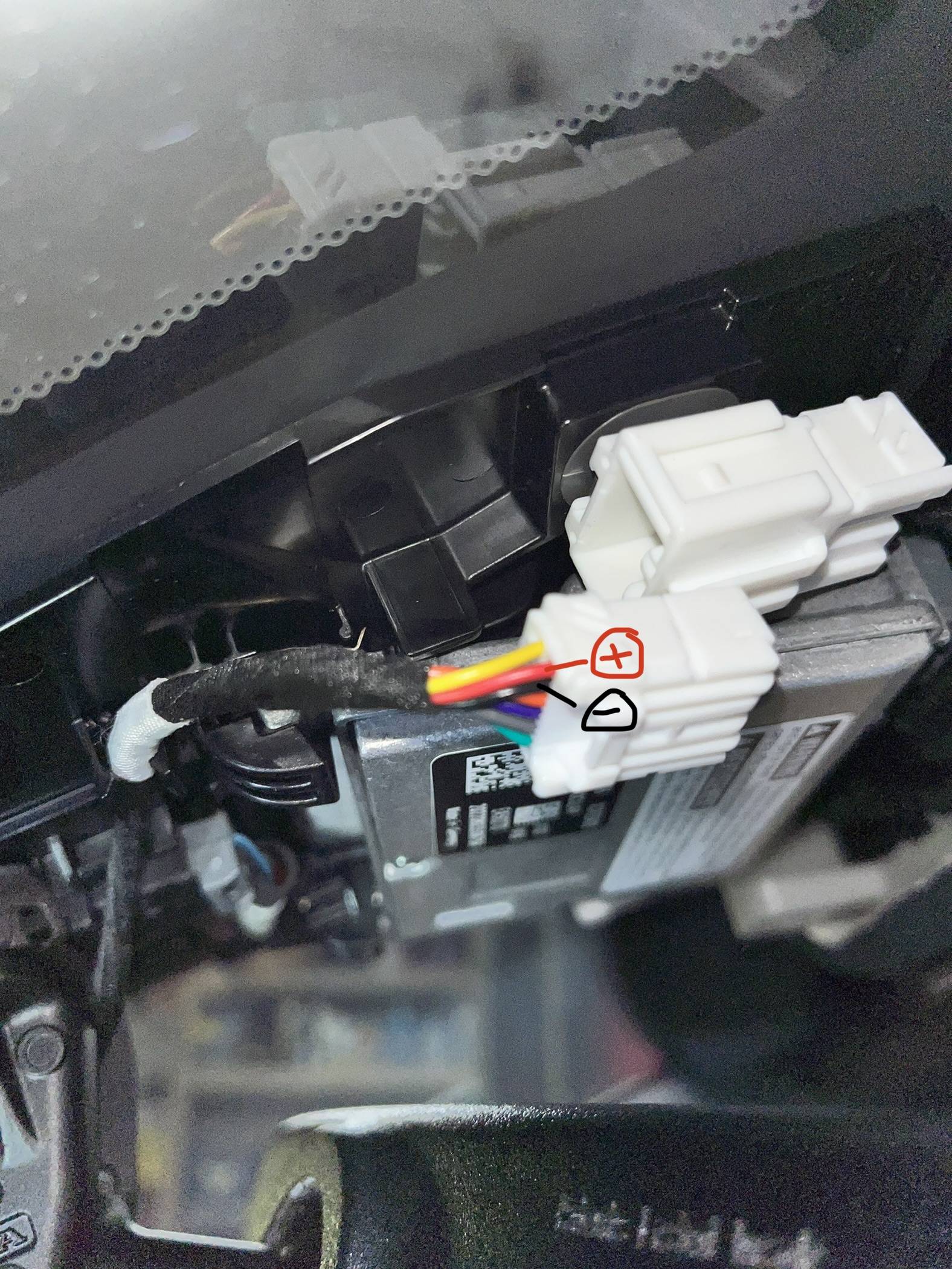

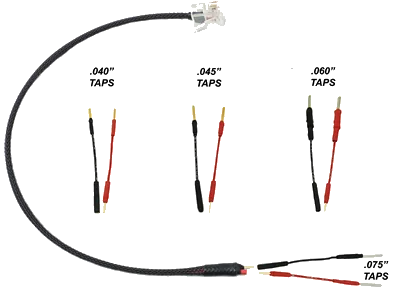

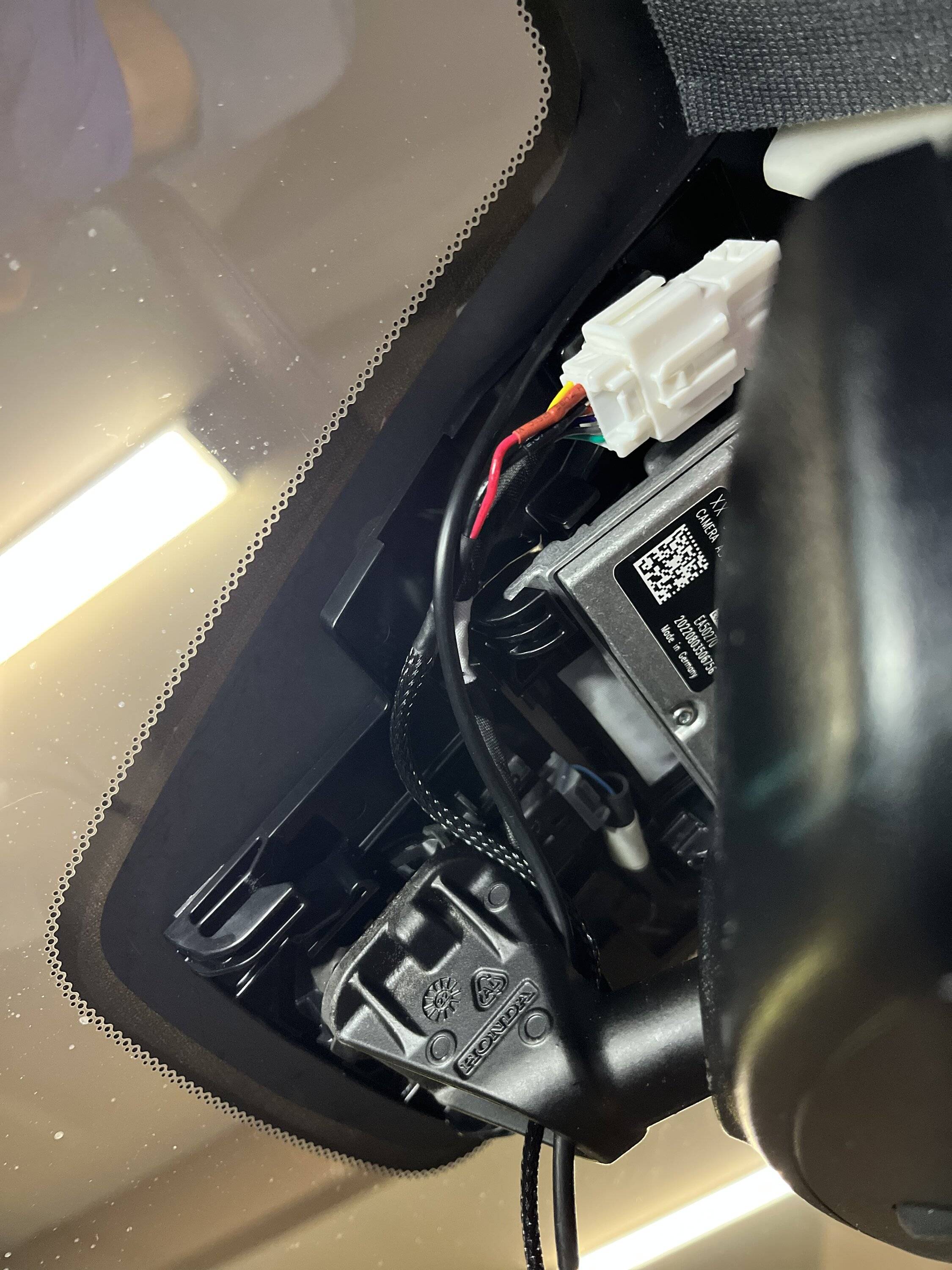

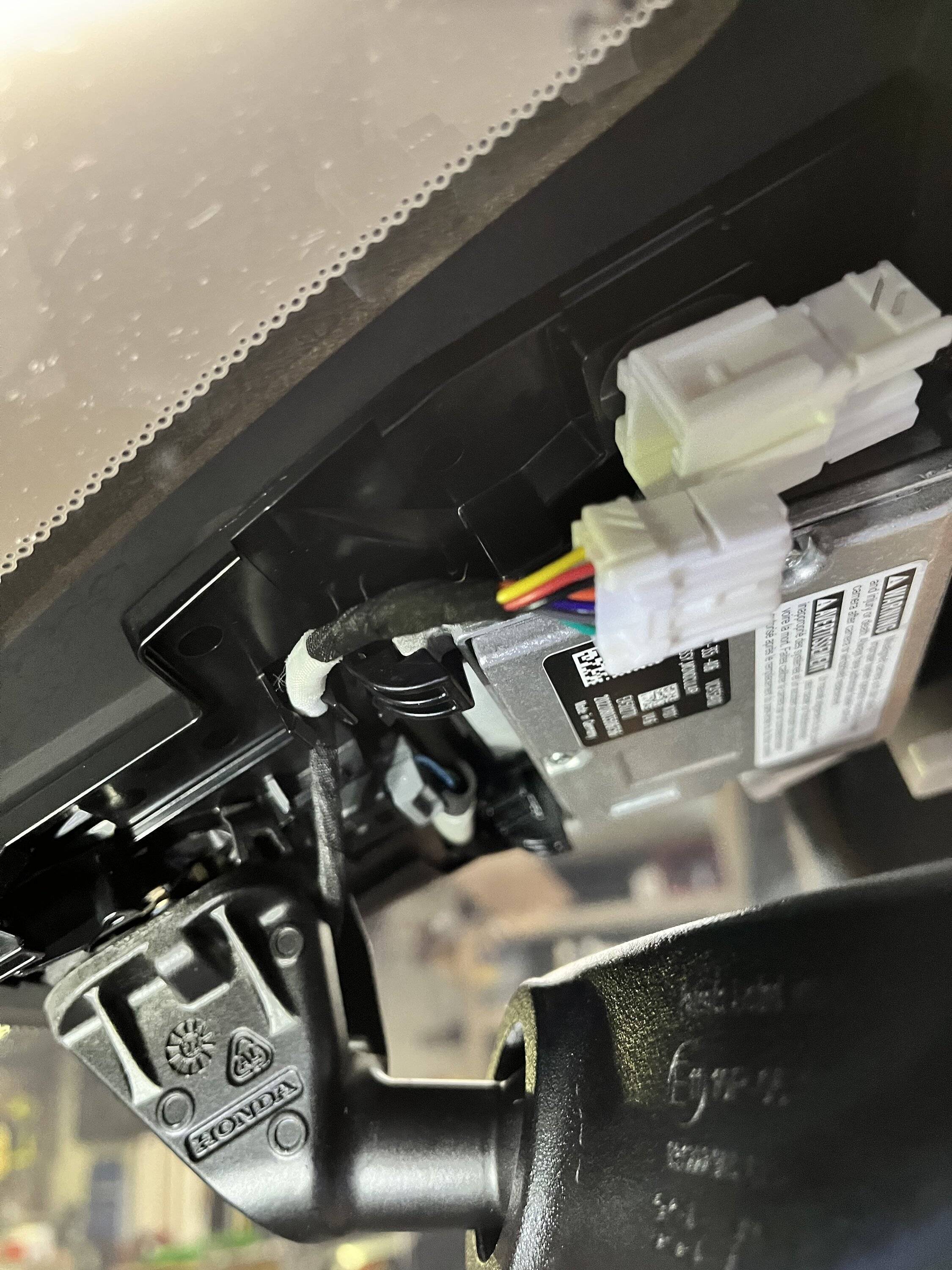

Radar Detector: there’s a connector containing 12V power behind the plastic housing that covers the rear view mirror mount and front facing camera/sensors. Theres just barely enough room on the back of the connector to tap into the red and black wires. Use a mirror tap type of cable with the thinnest pins.

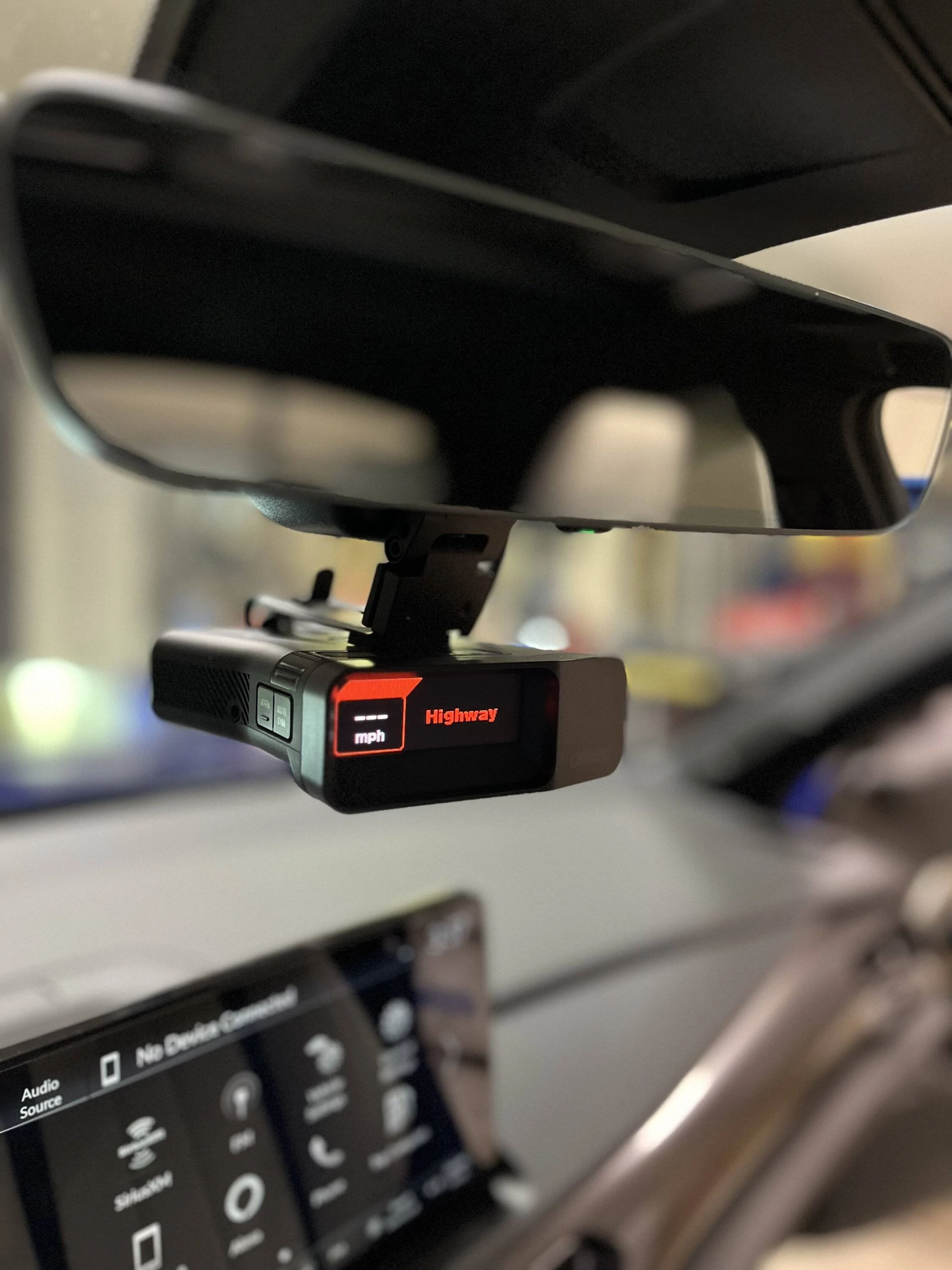

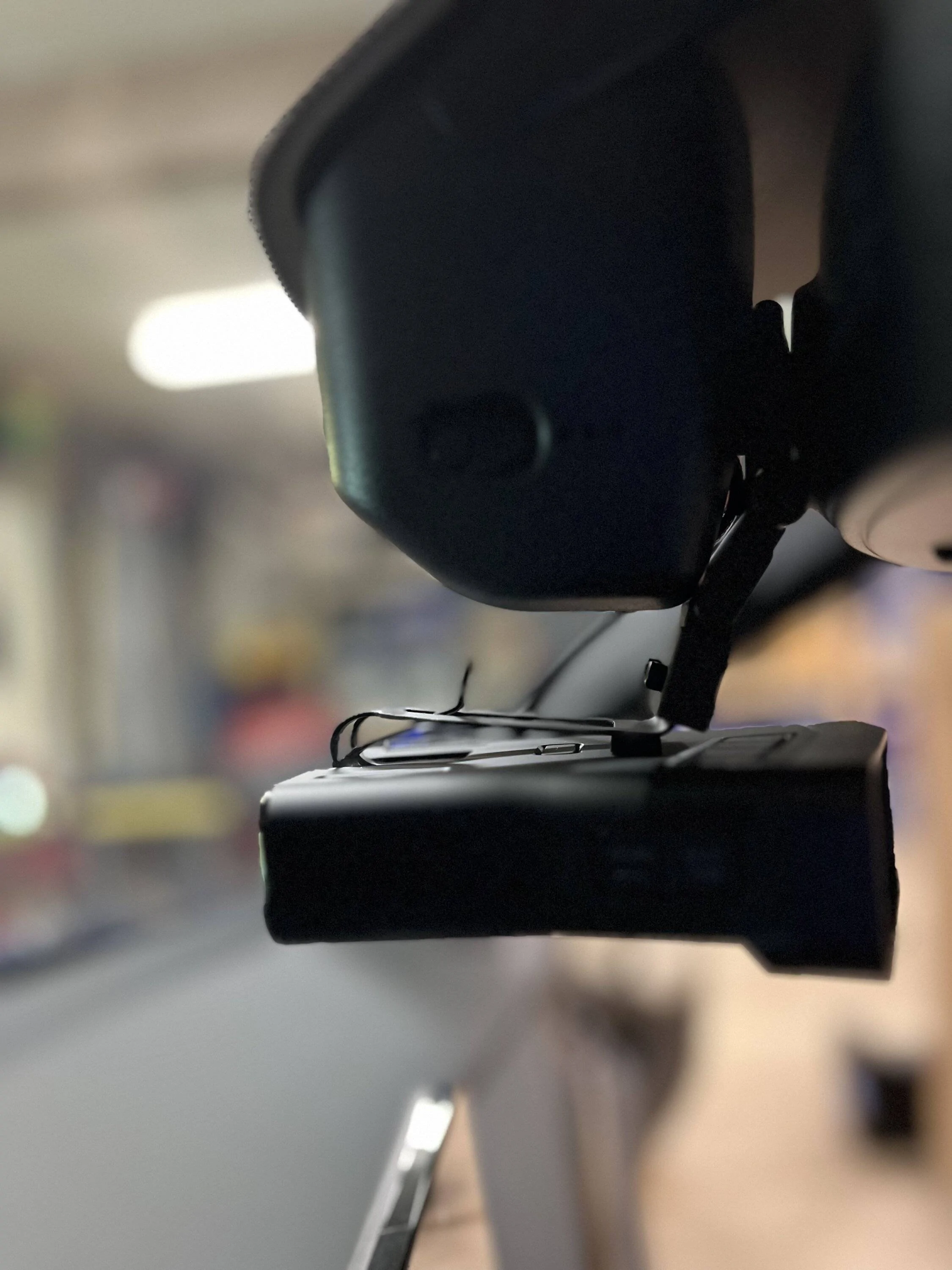

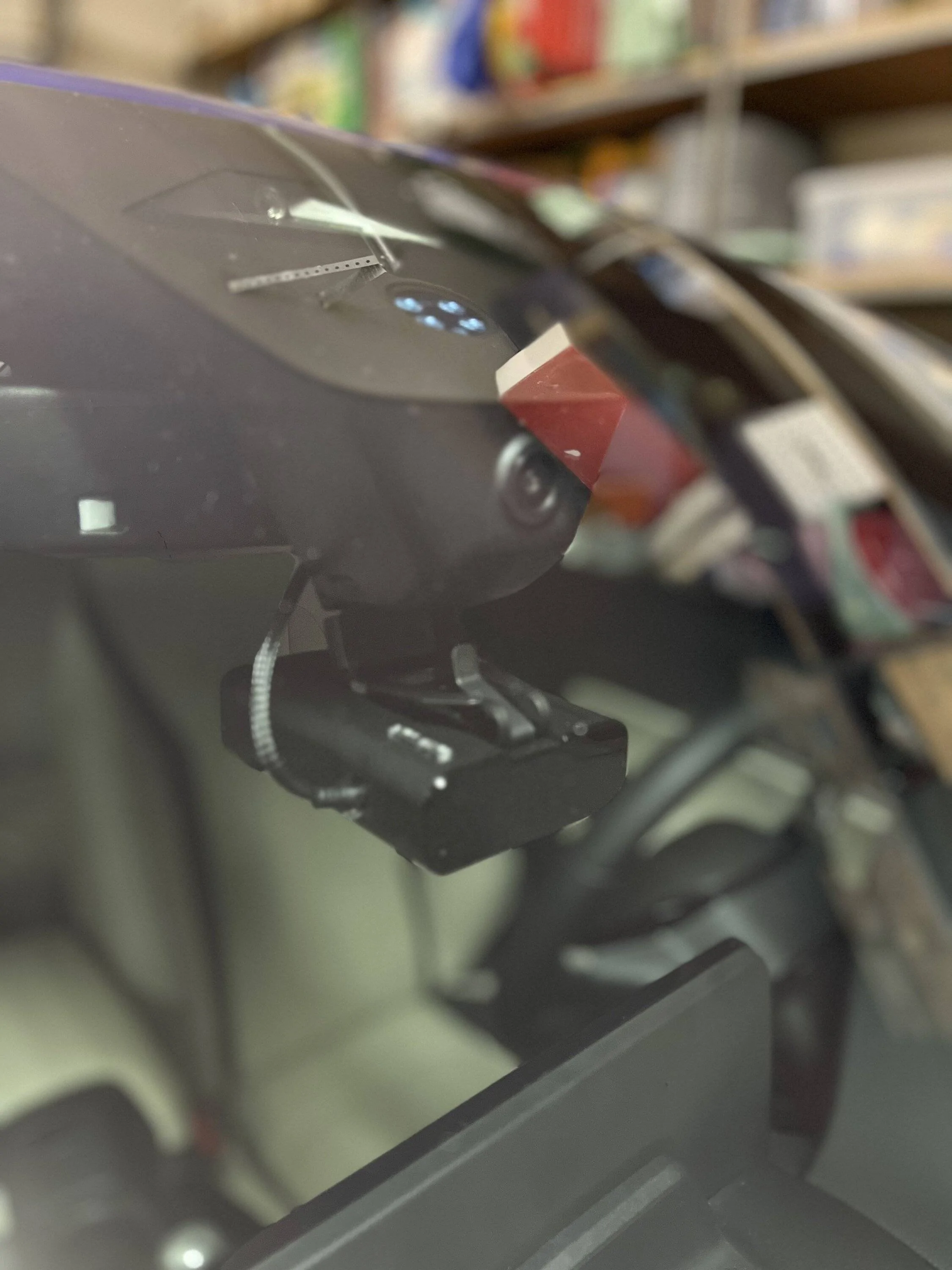

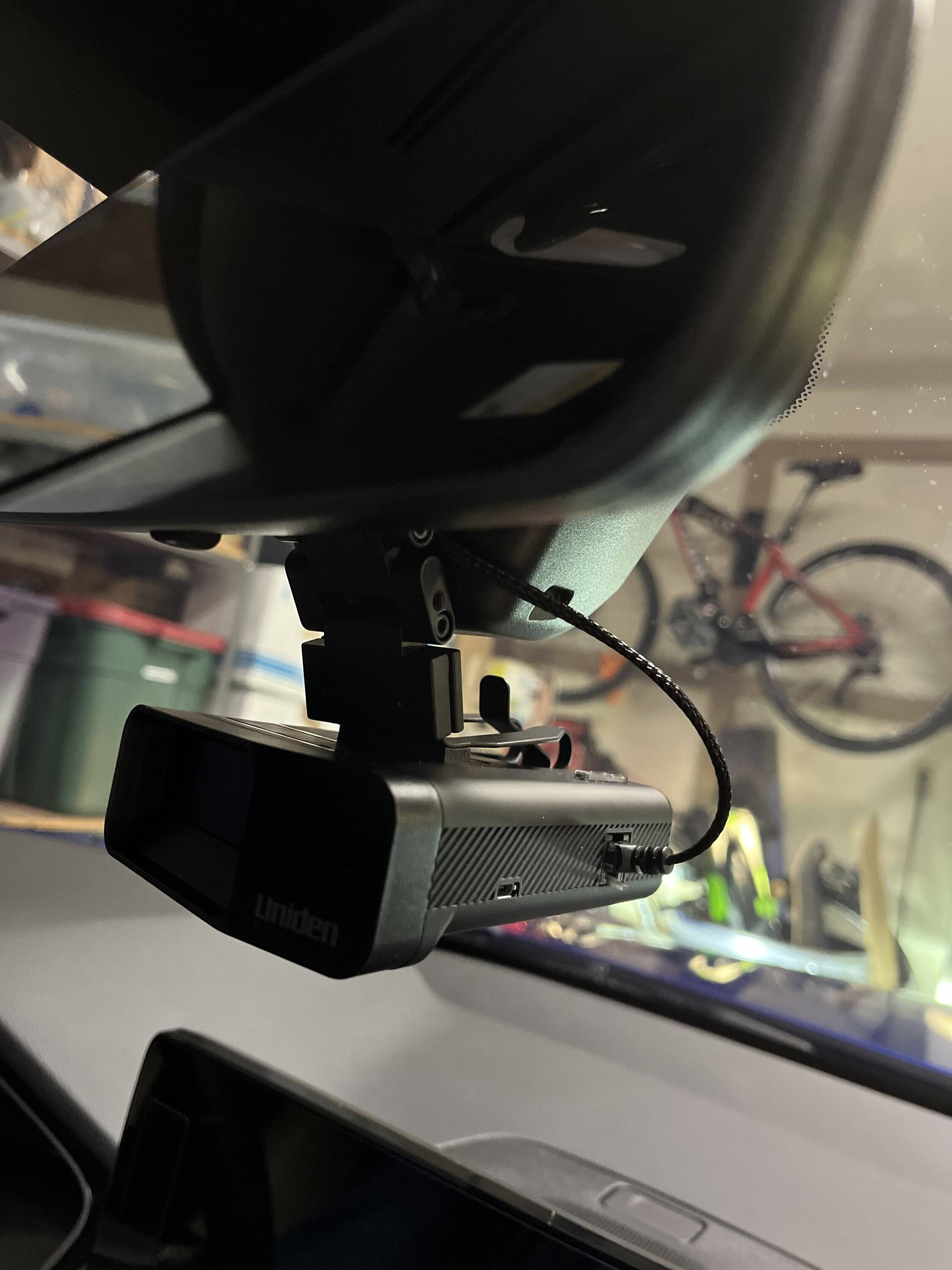

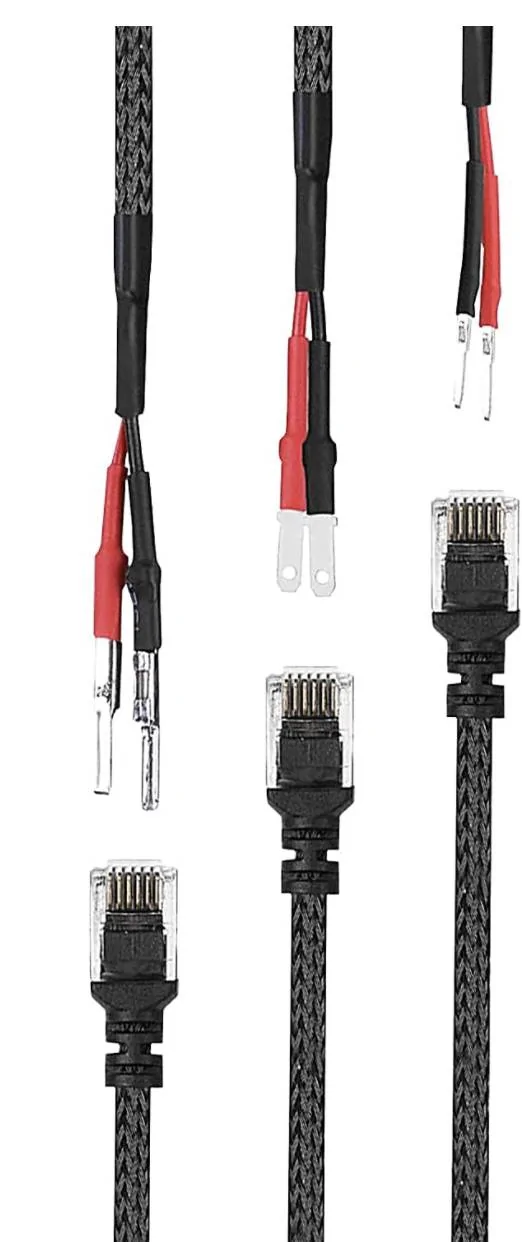

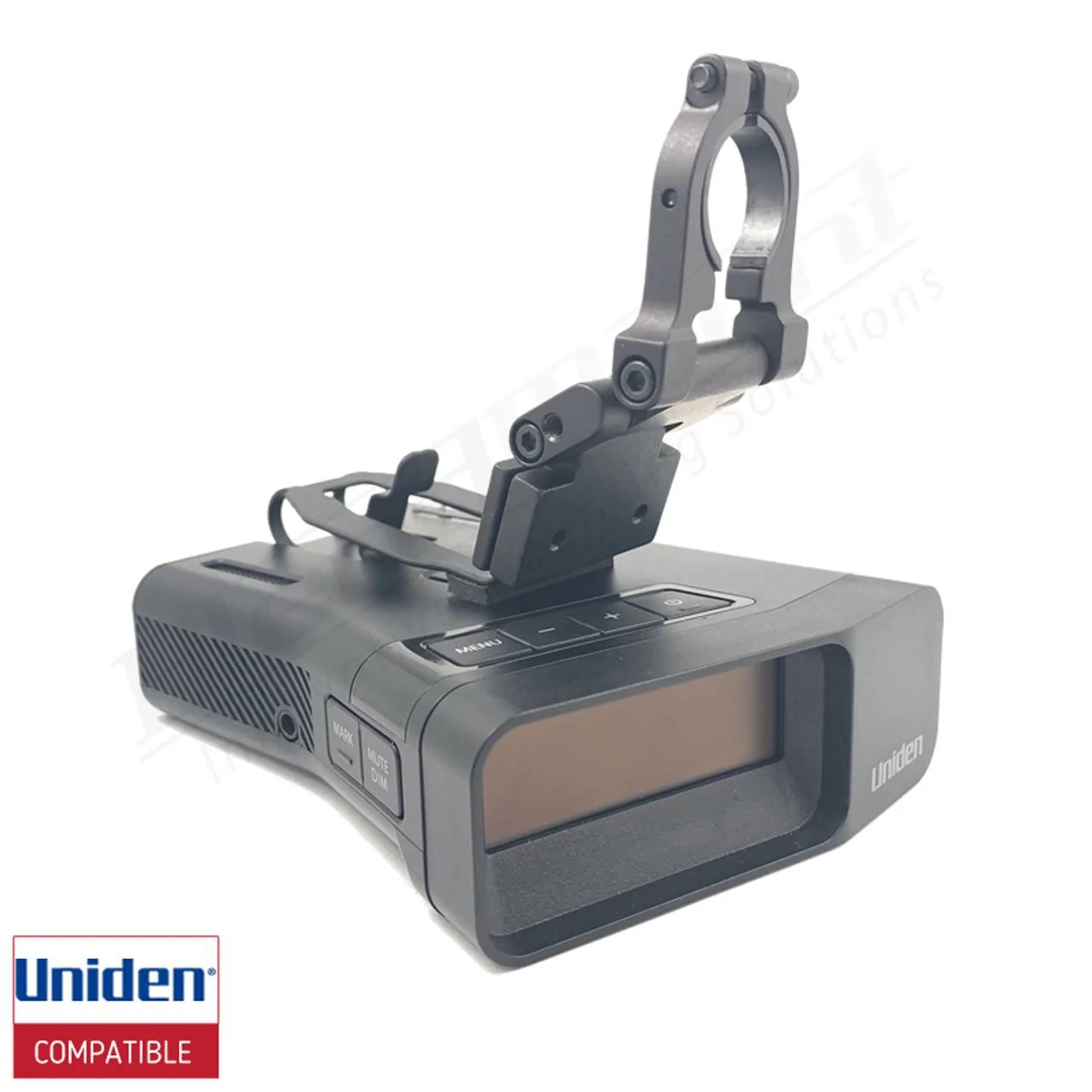

These mirror tap type of cables can be found on Amazon. I was able to tap into it for accessory power just fine. No need to use the Dongar USB power adaper or Micro USB-RJ11 cable. For the radar detector mount, I used one from Blendmount. I didn’t use the Acura Integra specific one because the FitCAMX camera housing was too tall it to extend below it. Instead, I used the one for 2022 Honda Civic and Uniden R7 (model# BR7-2001R) which gave me length to extend below the FitCAMX camera housing.





















Last edited:

ghostkp

Senior Member
First Name
Kyle
Joined
Jul 31, 2022
Threads
14
Messages
214
Reaction score
99
Location
Colorado
Car(s)
2023 Acura Integra 6MT
@RB2490 I got around installing the FitCAMX and Radar Detector.

FitCAMX: uses and adapter harness to split the power from an OEM connector behind the sunroof/map lights housing. It’s an easy install per this video.

Radar Detector: there’s a connector containing 12V power behind the plastic housing that covers the rear view mirror mount and front facing camera/sensors. Theres just barely enough room on the back of the connector to tap into the red and black wires. Use a mirror tap type of cable with the thinnest pins.

These mirror tap type of cables can be found on Amazon. I was able to tap into it for accessory power just fine. No need to use the Dongar USB power adaper or Micro USB-RJ11 cable. For the radar detector mount, I used one from Blendmount. I didn’t use the Acura Integra specific one because the FitCAMX camera housing was too tall it to extend below it. Instead, I used the one for 2022 Honda Civic and Uniden R7 (model# BR7-2001R) which gave me length to extend below the FitCAMX camera housing.




















How much mirror mobility did you lose? I have both, but tbh I'd rather just buy their Extenders and use the Acura one to not lose maneuverability.
